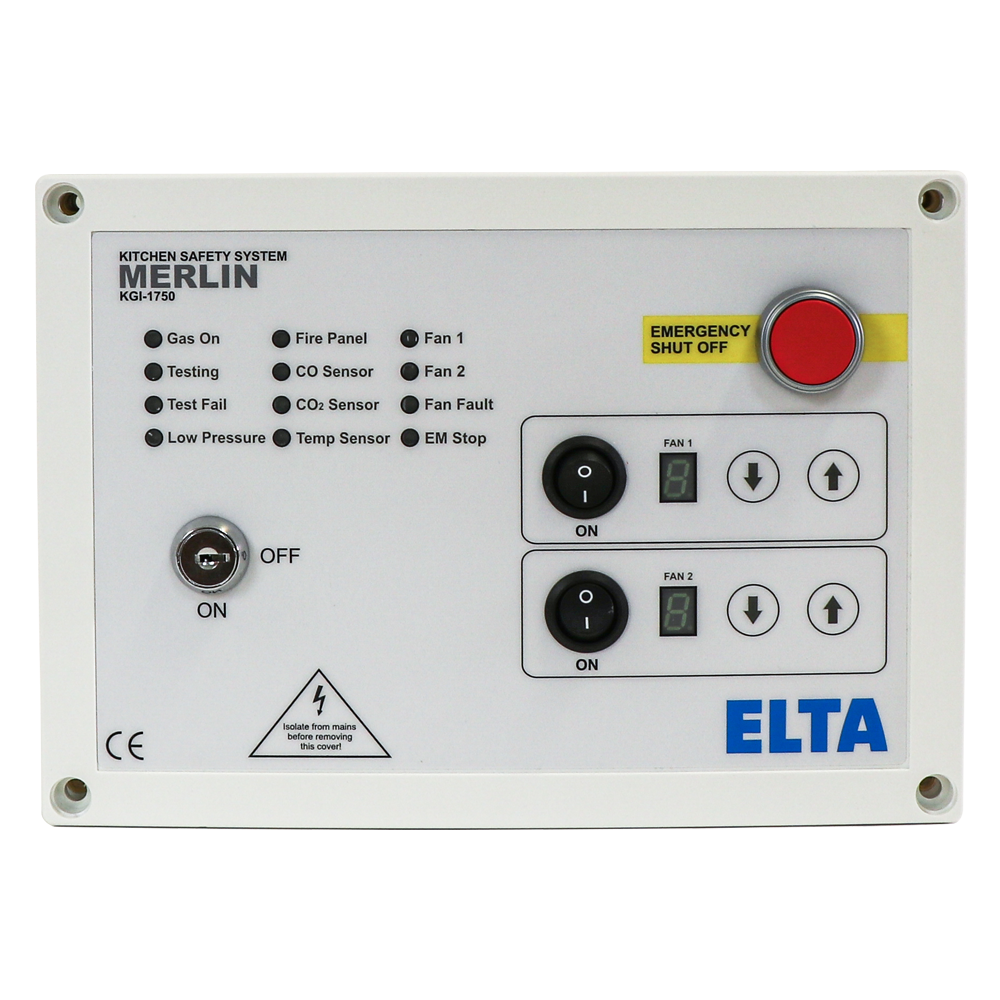

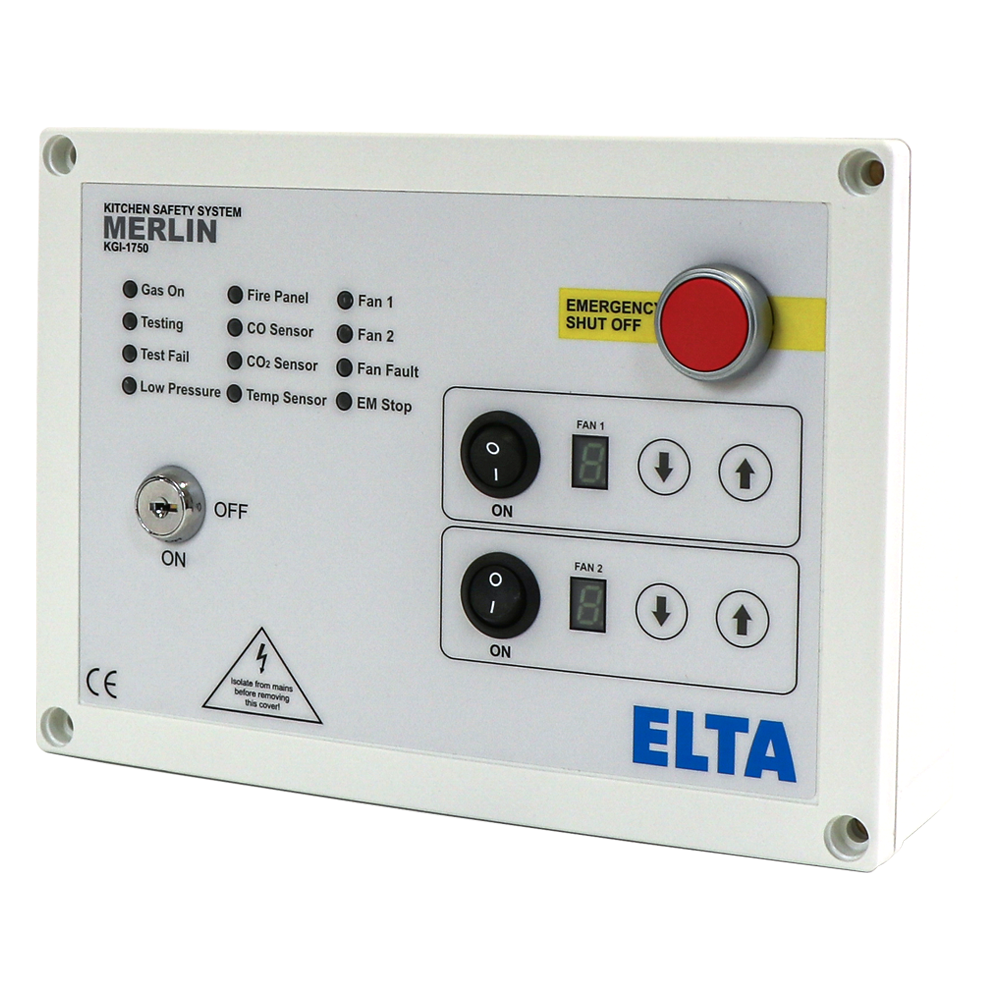

Gas Interlock Control System KGI-1750
- Compliance with BS6173 for commercial kitchens
- Gas proving for kitchen appliances which are not fitted with flame failure devices
- Adjustable fan speed control 0-10V for up to 2 fans
- Fan Interlock by external Differential Pressure Switches or Current Monitors (supplied separately)
- Emergency Shut off
- BMS Terminals for Alarm/Gas On/off
- Clear LED display for system indications
- Audible Alarm
- Will Interlock with up to 2 fans
SKU: 149-KGI-1750
1 in stock
Got a question about this product?
Overview
The Elta KGI-1750 System is designed for use in commercial kitchens with solid fuel appliances and charcoal ovens/grills. This panel acts an interlock between the ventilation and the gas solenoid valve and carries out a gas proving test on start up to check for any gas leaks or faulty appliances. The system is compatible with both current monitors and air pressure differential switches to interlock with up to 4 fans with fan on/off and speed control for 2 fans.
- Installation and Maintenance
Downloads
Features and Benefits
Gas & Fan Interlocking
The KGI-1750 provides interlocking of up to four fans and the gas solenoid valve
Emergency Shut Off
The unit is fitted with an emergency shut off cutting off the gas supply when activated.
BMS Connections
Connections are available to integrate with a Building Management System to make or break a circuit dependent on whether gas is on or off, (valve open or valve closed). This will tell the BMS whether the kitchen has use of the gas supply.
Fire Alarm Integration
The unit can be integrated with a fire alarm to close the gas supply automatically in the event of a signal from the fire alarm panel.
Fan Control
Located on the panel are up and down arrows increasing or decreasing the fan speed. This range will be limited by the maximum and minimum speeds set within the panel. On/Off switches are included for Fan 1 and Fan 2. 0-10V outputs can directly control EC fans or AC fans via Variable Frequency Drives. .
CO and CO2 Monitoring
The System works with carbon dioxide monitors and carbon monoxide detectors (sold Separately) to increase the speed of the ventilation when these gases are present, both in and out of working hours.
Designed to BS6173
Appliances must be interlocked with any mechanical ventilation system that is fitted cutting off the gas supply or prevent the operation of appliances if the mechanical ventilation system provides an inadequate airflow rate for the safe operation of appliances and the safety of personnel.
Specification
Description
The KGI-1750 system as supplied by Elta UK limited, 46 Third Avenue, Pensnett Trading Estate, Kingswinford, West Midlands, DY7 7US, UK.
Operation
The KGI-1750 shall provide an interlock between the Gas Solenoid valve and the Mechanical Ventilation System in accordance with BS6173 using external pressure differential switches or current monitors. On/ Off and speed control via 0-10V output for two fans shall be available with minimum and maximum speeds being set from within the panel enclosure. LED Status indication shall be provided for Gas On, Emergency Stop, Fan 1, Fan 2, Fan Fault, Testing, Fire Panel, CO Sensor, CO2 Sensor, Temp Sensor and Low Pressure. When fans have been activated the FGI-1750 shall be switched on using the key switch. The Panel mounted Emergency shut off shall be used to disconnect the Gas Solenoid Valve in the event of emergency, further emergency shut off switches for remote use can be used.
Warranty
The KGI-1750 shall have a Three Year Warranty.
